Product Information
WHAT IS TAG & STICK?
Tag & Stick is a two ply water barrier underlayment system. The Tag & Stick underlayment combines proven mechanical attachment with self-adhering technology. This product can be installed with any steep slope roofing product such as tile, shingles, metal, shakes, slate, or any other sloped roofing product that requires an underlayment. One of the many innovative features and benefits of this technology, is the ability to remove this underlayment when it’s time to re-roof without damaging the sheathing due to the mechanical attachment. Developed with like and kind material for maximum uplift within the two-ply system.
TAG & STICK ADVANTAGES
Tag & Stick offers benefits not available with any of other products on the market.
Here’s a few reasons to try Tag & Stick on your next project.
- Two Modified Plies – One Step Application
- Installs faster than current two ply systems
- Dry in, metal, cap sheet all at once
- Less trips per job
- No priming of the deck
- No back nailing cap sheet
- Removable in the future
- No hot tar or torches
- Better uplift than codified 30/90 hot mop
- Two layers – top layer 60 mils, bottom layer 55 mils – 115 mils total
- No kettle-no hot mop-no burns
- Works with battens and all existing flashings
- Will not delaminate the decking at re-roof time
How To Purchase
Tag & Stick MTP (Modified two ply)
(SKU: ETSL-label or ETSB-boxed)
a 36″ wide SBS modified self-adhering membrane reinforced with a non-woven fiberglass mat.
Tag & Stick Starter Sheet all Selvage
(SKU: E18SSS)
an 18″ Selvage (mechanically attached) portion of the roll cut by the factory.

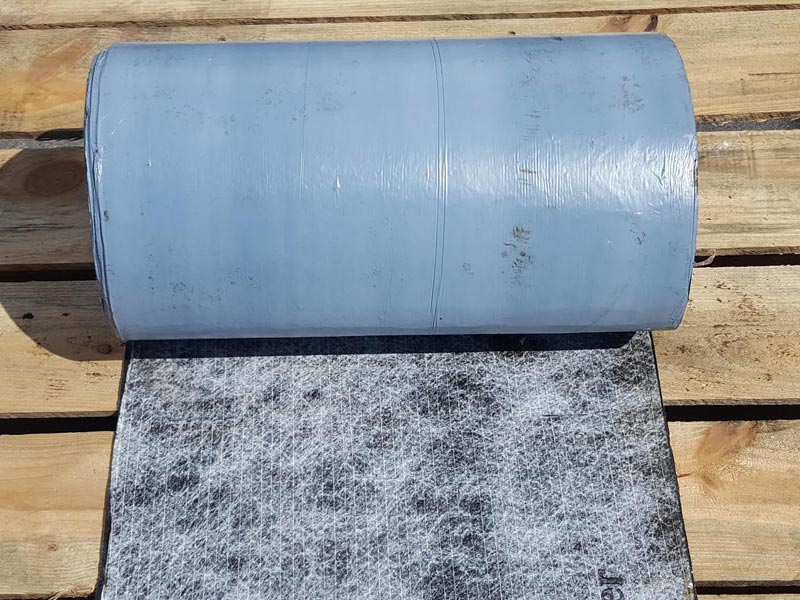

Tag & Stick Woven Cap Sheet
(SKU: E18WCS-boxed)
an 18″ Polyester Woven self-adhered portion of the roll cut by the factory.
Tag & Stick Woven Flashing Sheet
(SKU: E6WFS)
an 6″ Polyester Woven self-adhered portion of the roll cut by the factory.
| ETSL-Label or ETSB-Boxed MTP full size roll |
E18SSS Starter Sheet |
E18WCS Cap Sheet |
E6WFS Flashing Sheet |
|
|---|---|---|---|---|
| Rolls per Pallet | 25 | 50 | 50 | 150 |
| Rolls per Box | 1 | 2 | 2 | 6 |
| Lineal Ft per Box | 66.8 | 133.6 | 133.6 | 396 |
| Lineal Ft per Roll | 66.8 | 66.8 | 66.8 | 66.8 |
| Roll Weight | 70 lbs +/- 2 lbs | 35 lbs +/- 2 lbs | 35 lbs +/- 2 lbs | 12 lbs +/- 2 lbs |
| Roll Diameter | 36″ | 18″ | 18″ | 6″ |
| Sq Ft Coverage | 100 | NA | NA | NA |
| Roll Dimensions | 36″ x 66.8′ (200 sq ft) | 18″ x 66.8′ (100 sq ft) | 18″ x 66.8′ (100 sq ft) | 6″ x 66.8′ (100 sq ft) |
To place an order or if you have any questions please call (954) 255-3107.
Starter Sheet Calculations based on Squares
Estimates only, actual results may vary.
| Roof Area in Squares (100 SqFt) Eave Lineal Feet/Square |
1.00 7.50 |
|
|---|---|---|
| Roof Size Calculation for Lineal Feet |
40.00 40.00 x 7.50 = 300.00 |
Squares Feet |
| Lineal Feet Needed Starter Sheet Length |
300.00 66.8 |
Feet Feet |
| Calculation for Stater Sheet Rolls | 300.00 / 66.8 = 4.49 | Rolls |
| Rolls Needed | 4.49 | Rolls |
| Rolls per Box | 2.00 | Roll |
| Boxes Needed | 2.25 | Boxes |
| Order | 3.00 | Boxes |
| Roof Area Squares | Lineal Feet of Eave | Starter Sheet Rolls | Starter Sheet Boxes |
|---|---|---|---|
| 15 | 112.50 | 1.68 | 0.84 |
| 20 | 150.00 | 2.25 | 1.12 |
| 25 | 187.50 | 2.81 | 1.40 |
| 30 | 225.00 | 3.37 | 1.68 |
| 35 | 262.50 | 3.93 | 1.96 |
| 40 | 300.00 | 4.49 | 2.25 |
| 45 | 337.50 | 5.05 | 2.53 |
| 50 | 375.00 | 5.61 | 2.81 |
| 55 | 412.50 | 6.18 | 3.09 |
| 60 | 450.00 | 6.74 | 3.37 |
| 65 | 487.50 | 7.30 | 3.65 |
| 70 | 525.00 | 7.86 | 3.93 |
| 75 | 562.50 | 8.42 | 4.21 |
| 80 | 600.00 | 8.98 | 4.49 |
| 85 | 637.50 | 9.54 | 4.77 |
| 90 | 675.00 | 10.10 | 5.05 |
| 95 | 712.50 | 10.67 | 5.33 |
| 100 | 750.00 | 11.23 | 5.61 |
| 105 | 787.50 | 11.79 | 5.89 |
| 110 | 825.00 | 12.35 | 6.18 |
| 115 | 862.50 | 12.91 | 6.46 |
| 120 | 900.00 | 13.47 | 6.74 |
| 125 | 937.50 | 14.03 | 7.02 |
| 130 | 975.00 | 14.60 | 7.30 |
| 135 | 1,012.50 | 15.16 | 7.58 |
| 140 | 1,050.00 | 15.72 | 7.86 |
| 145 | 1,087.50 | 16.28 | 8.14 |
| 150 | 1,125.00 | 16.84 | 8.42 |
